Low Pressure Airmix - AM


Part Numbers

AM110 (01, 015, 02, 025, 03, 04, 05, 06)




AMDF (02, 025, 03, 035, 04, 045, 05, 045, 05, 055, 06, 07, 08, 09, 10, 12)




AMCQ110 (015, 02, 03, 04, 05, 06)




AMOC (02, 025, 03, 04, 05)
Description
AM 110° Flat Fan AirMix® Venturi Nozzle
AMDF Dual 110° Flat Fan AirMix® Venturi Nozzle
AMCQ 110° Flat Fan Acid Resistant AirMix®
AMOC Off Center AirMix®

15-90 psi Overall pressure range

Estimated life (60’ boom, 20” centers)
15,000-20,000 acres

The original low pressure, economical air injection nozzle.

Airmix® Low Pressure Nozzle (AM)

Low Cost AirMix® offers the most economical solution for drift control
Easy Maintenance No tools required for servicing
Quick Retrofit Fits standard nozzle caps
Reduced Plugging AirMix® utilizes a unique air cleaning system found on no other nozzle
Reduces drift by 50-80% When compared to conventional low drift nozzles.
Operates at lower pressures Optimal pressure is 20-60 psi; overall range is 15-90 psi (great with rate controllers).
Fits standard caps Can be used on all types of sprayers.
Unique patented air cleaning system Prevents air hole plugging.
Compact size 7/8" long
Excellent coverage Proven in 3 gpa glyphosate applications, as well as many contact applications.
Drift control made easy. Less coarse than other air injection nozzles
for better coverage at standard pressures.

The AirMix® Nozzle is a compact, economical air injection nozzle designed to provide both drift control and surface coverage at conventional spray pressures.

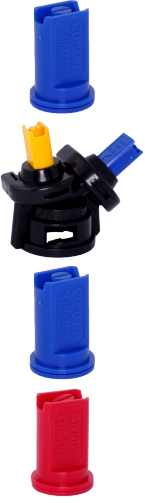

AirMix® is available in four configurations:

AM Low Pressure AirMix® Venturi Nozzle, 110° Flat Fan
20-60 psi Optimal Pressure Range
Two piece, polyacetal construction. No tools required for disassembling. Fits standard caps.

AMDF Dual AirMix® Venturi Nozzle, Dual Asymmetric 110° Flat Fan
20-60 psi Optimal Pressure Range
Two Air Mix nozzles in DualFan Cap for increased backside coverage. Polyacetal construction. No tools required for disassembling.

AMCQ Acid Resistant AirMix® Venturi Nozzle, 110° Flat Fan
Designed to improve cotton defoliation applications.
Ideal for other low pH applications.
45-90 psi Optimal penetration and coverage
Two piece, polypropylene construction with EPDM o-ring. No tools required for disassembling. Fits standard caps (acid resistant polypropylene cap is available).
Available in sizes: 015, 02, 03, 04, 05, and 06

AMOC Low Drift AirMix® Off Center Nozzle
Drift resistant off center spray pattern for end nozzle applications and directed sprays.
20-60 psi Optimal pressure range
Two piece, polyacetal construction. No tools required for disassembling. Fits standard caps.
Available in sizes: 02, 025, 03, 04, and 05
