Golf Course Applications

TurboDrop® XL Venturi Nozzle for Turf Spraying

Greenleaf's patented TurboDrop® XL Venturi Nozzle offers a unique combination of superior drift control and excellent coverage, making it an ideal choice for all of your spraying applications.

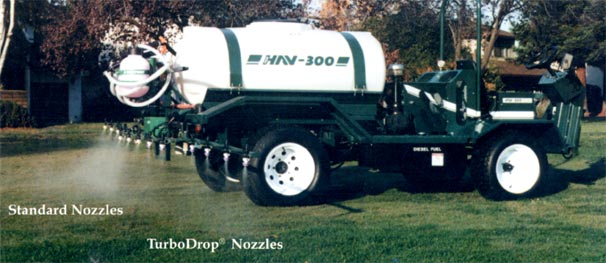

TurboDrop® nozzles are used on hundreds of golf courses to control drift and improve coverage. TurboDrop® nozzles eliminate the need for expensive shrouded booms, and can be easily retrofitted to any sprayer on the market.

The TurboDrop® venturi nozzle produces larger air filled spray droplets (while eliminating driftable fines) which spread on contact with a leaf surface. The result is improved target coverage with reduced drift. The higher velocity droplets also penetrate the thatch better than conventional nozzles. The TDXL TurboDrop® nozzle is all polyacetal. The TDCXL has a ceramic metering orifice for extended wear life.

  • Wide Pressure Range
    20-120 psi.
  • Separate Injector (Venturi)
    Comes apart by hand, easy to clean (no tools required).
  • Drop Size Uniformity
    Patented stabilization chamber provides even and uniform mixing of air with liquid which gives a tighter, more uniform droplet spectrum and a homogenous spray solution.
  • Excellent With Rate Controllers
    Wide pressure range allows greatest speed variations.
  • Improved Coverage, reduced Runoff
    Aif-filled droplets spread on the target surface rather than bouncing off.
  • Interchangable TipCap
    Two spray nozzles in one. Other tips may also be used.
  • Proven TurboDrop® Technology
    Over 8 years, in 35 countries.
  • Longer Wear Life
    Pre-orifice technology protects pattern orifice.
  • Excellent Spray Distribution
    Patented pulsation dampener provides stable, uniform spray pattern across pressure range for good patternation and coverage.
  • Widest Variety of Application
    Recommended for herbicides, fungicides, insecticides, fertilizers, growth regulators, etc.
  • More Spray on Target
    Dramatic reduction of off-taget movement, even in high winds.
  • Lower Water Usage
    Both air and water are used as a carrier. Lower carrier rates possible.

TurboDrop® XL Nozzle Tabulations
