Airmix - AM

Part Numbers

AM110 (01, 015, 02, 025, 03, 04, 05, 06)




AMDF (02, 025, 03, 035, 04, 045, 05, 055, 06, 07, 08, 09, 10, 11, 12)



AMCQ110 (015, 02, 03, 04, 05, 06)




AMOC (02, 025, 03, 04, 05)





AM80 (02, 025)





AMHC (01, 015, 025)





AMAN (02, 025, 04)

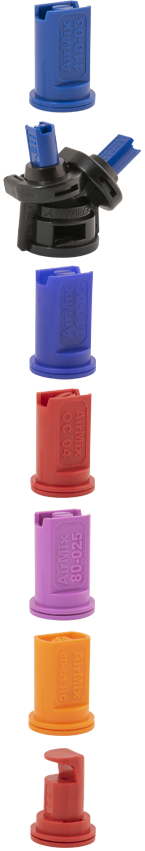

Description
AM110 AirMix® 110° Flat Fan
AMDF AirMix® Asymmetric Dual Fan
AMCQ110 Acid Resistant 110° Flat Fan
AMOC AirMix® Off Center
AM80 AirMix® 80° Flat Fan
AMHC80 AirMix® Hollow Cone
AMAN AirMix® Anvil

15-90 psi Overall pressure range

Estimated life (60’ boom, 20” centers)
15,000-20,000 acres
Resources
Testimonials Add Your Review
Frank Stevens - Glenboro, MB, Manitoba
Crop: Canola, Cereal
Glenn Friesen - Minnedosa, Manitoba
Crop: Wheat, Canola
J. Byron Kinsinger - Cambridge City, Indiana
Crop: Corn, Soybean
Larry Husted - Stavley, Alberta
Crop: Barley, Wheat, Canola
Randy Koehn - Koehn Custom Spraying - Benito, Manitoba
Crop: Canola, Wheat
Joel Lesann - The Pas, Manitoba
Crop: Barley
Darryl Heide - Killarney, Manitoba
Crop: Various
Cameron Bodie - Moose Jaw, Saskatchewan
Crop: Cereal, Preseed, Lentils
Ken Jensen - Gull Lake, Saskatchewan
Crop: Burndown, Field Peas, Durum
Mark Benson - Pantego, North Carolina
Crop: Corn, Cotton, Soybean, Burndown

The original low pressure, economical air induction nozzle.

Airmix® Nozzle (AM)

Low Cost AirMix® offers the most economical solution for drift control
Easy Maintenance No tools required for servicing
Quick Retrofit Fits standard nozzle caps
Reduced Plugging AirMix® utilizes a unique air cleaning system found on no other nozzle
Reduces drift by 50-80% When compared to conventional low drift nozzles.
Operates at lower pressures Optimal pressure is 20-60 psi; overall range is 15-90 psi (great with rate controllers).
Fits standard caps Can be used on all types of sprayers.
Unique patented air cleaning system Prevents air hole plugging.
Compact size 7/8" long
Excellent coverage Proven in 3 gpa glyphosate applications, as well as many contact applications.
Drift control made easy. Less coarse than other air injection nozzles
for better coverage at standard pressures.

AM110 AirMix®, 110° Flat Fan
20-60 psi Optimal Pressure Range
A compact, economical air induction nozzle designed to provide both drift control and surface coverage at conventional spray pressures. Two piece, polyacetal construction. No tools required for disassembling. Fits standard caps.

AMDF Dual AirMix®, Dual Asymmetric 110° Flat Fan
20-60 psi Optimal Pressure Range
Two Air Mix nozzles in DualFan Cap for increased backside coverage. Polyacetal construction. No tools required for disassembling.

AMCQ Acid Resistant AirMix®, 110° Flat Fan
Designed to improve cotton defoliation applications.
Ideal for other low pH applications.
45-90 psi Optimal penetration and coverage
Two piece, polypropylene construction with EPDM o-ring. No tools required for disassembling. Fits standard caps (acid resistant polypropylene cap is available).
Available in sizes: 015, 02, 03, 04, 05, and 06

AMOC Low Drift AirMix® Off Center Nozzle
Drift resistant off center spray pattern for end of boom applications and directed sprays.
20-60 psi Optimal pressure range
Two piece, polyacetal construction. No tools required for disassembling. Fits standard caps.
Available in sizes: 02, 025, 03, 04, and 05

AM80 AirMix® 80° Flat Fan
Drift resistant 80° spray pattern for applications that require higher boom heights or directed sprays.
20-60 psi Optimal pressure range
Two piece, polyacetal construction. No tools required for disassembling. Fits standard caps.
Available in sizes: 02 and 025

AMHC80 AirMix® Hollow Cone
Very Drift resistant Hollow Cone with an 80° spray pattern for drone and spot spraying applications.
20-60 psi Optimal pressure range
Two piece, polyacetal construction. No tools required for disassembling. Fits standard caps.
Available in sizes: 01, 015, and 025

AMAN AirMix® Anvil
Air Induction Anvil Nozzle for drift reduction applications that require and anvil nozzle.
20-60 psi Optimal pressure range
Two piece, polyacetal construction. No tools required for disassembling. Fits standard caps.
Available in sizes: 02, 025, and 04
